In the world of construction and engineering, the choice of materials can mean the difference between a structure that stands the test of time and one that falters. Aynest Metal understands this critical aspect, and our range of steel channels stands as a testament to our commitment to providing top-quality materials for your projects.

Steel channels, also known as C-channels or U-channels, are essential components in the construction and engineering world. They are prized for their versatility, durability, and exceptional load-bearing capacity. At Aynest Metal, we offer a comprehensive selection of steel channels, each tailored to meet the unique requirements of your projects.

A Spectrum of Shapes for Varied Applications

Our inventory of steel channels encompasses various types, each designed to excel in specific applications, which are listed below.

Get more info!

Please don't hesitate to get in touch regarding our products.

Contact Us
See Product Details

UAC Channel Sizes (mm)
G
kg/m		 h
mm		 b
mm		 tw
mm		 tf
mm		 A
cm2
UAC 30 1,45 30 15 2,8 3,5 1,85
UAC 35 1,8 35 17,4 2,8 4 2,29
UAC 40 2,09 40 20 2,8 4,8 2,66
UAC 50 3,09 50 25 3 5,4 3,94
UAC 60 4,02 60 30 4 5,1 5,12
UAC 70 6,1 70 39,3 4,5 6 7,77

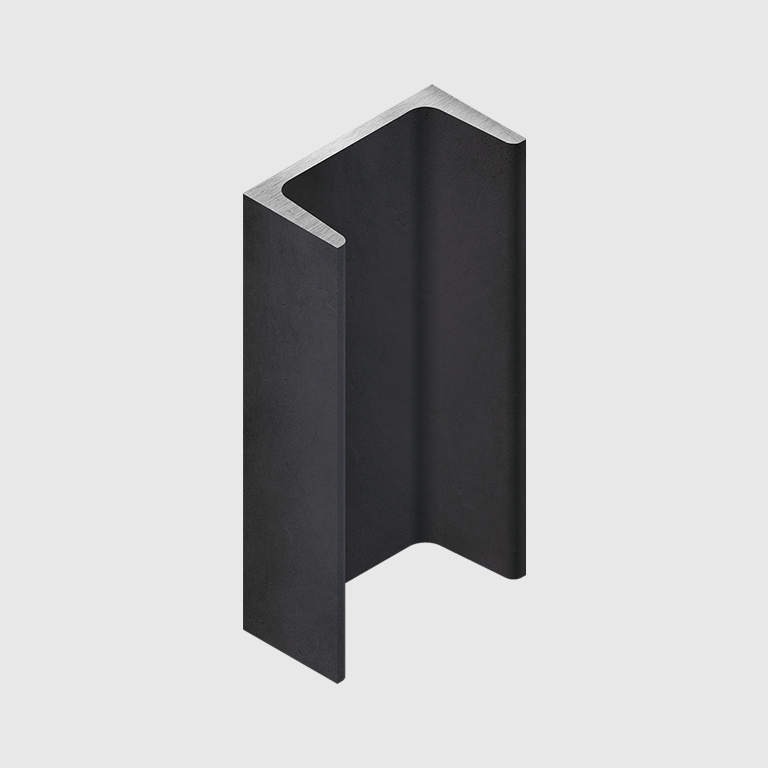

UAC Channels

Size: It’s produced from 4 m to 18 m.
Length: Mill Standard
Tolerances: EN 10279

UAC profiles, channel length is short steel forms. These profiles are used in many fields including industrial infrastructures, construction applications, decorative applications, cable ducts, automotive and railway sectors, elevators and escalators, base plate applications. According to customer demand, there is a wide range of production quality and variety with special production possibilities.

See Product Details

PFC Channel Sizes (mm)
G
kg/m		 h
mm		 b
mm		 tw
mm		 tf
mm		 r
mm		 A
cm2
PFC 75X40X6 5,9 75 40 3,8 6,1 – 7,52
PFC 100X50X10 10,2 100 50 5,0 8,5 9 13,00
PFC 125X65X15 14,8 125 65 5,5 9,5 12 18,80
PFC 150X75X18 17,9 150 75 5,5 10,0 12 22,80
PFC 150X90X24 23,9 150 90 6,5 12,0 12 30,40
PFC 180X75X20 20,3 180 75 6,0 10,5 12 25,90
PFC 180X90X26 26,1 180 90 6,5 12,5 12 33,20
PFC 200X75X23 23,4 200 75 6,0 12,5 12 29,90
PFC 200X90X30 29,7 200 90 7,0 14,0 12 37,90
PFC 230X75X26 25,7 230 75 6,5 12,5 12 32,70
PFC 230X90X32 32,2 230 90 7,5 14,0 12 41,00
PFC 260X75X28 27,6 260 75 7 12 12 35,10
PFC 260X90X35 34,8 260 90 8 14 12 44,40
PFC 300X90X41 41,4 300 90 9 15,5 12 52,73
PFC 300X100X46 45,5 300 100 9 16,5 15 58,00

PFC Channels

Size: It’s produced from 4 m to 18 m.
Length: BS 4-1
Tolerances: EN 10279

PFC profiles define Parallel Flange Channel profiles. This profile is mainly used in Britain and areas in Asia with British influence. For this reason, another name is referred to as British Parallel Flanged Channel Profiles. PFC profiles have different thicknesses in the web and flange area compared to UPE profiles. It’s generally heavier than UPE’s and lighter than UPN / NPU’s. Although PFC profiles are used in construction designs, they also provide ease of installation in the field of application compared to conical flanged profiles.

See Product Details

C Channel Sizes (mm)
(imperial) G
kg/m		 G
lbs/ft		 h
mm		 b
mm		 tw
mm		 tf
mm		 A
cm2
C 1 1/2 x 1/2 x 1/8 1,66 1,12 38,1 12,7 3,18 4,6 2,1
C 1 1/2 x 3/4 x 1/8 1,74 1,18 38,1 19,05 3,18 3,2 2,2
C 2 X 1/2 X 1/8 2,13 1,44 50,8 12,7 3,18 5,5 2,7
C 2 X 1 X 1/8 2,36 1,59 50,8 25,4 3,18 3,05 3,0
C 2 X 1 X 3/16 3,45 2,33 50,8 25,4 4,76 4,8 4,4
C 3 x 3,5 5,2 3,50 76 35 3,4 6,9 6,65
C 3 x 4,1 6,1 4,10 76 35 4,3 6,9 7,81
C 4 x 4,5 6,7 4,50 102 39 3,2 7,5 8,52
C 4 x 5,4 8,0 5,40 102 40 4,7 7,5 10,3
C 6 x 8,2 12,2 8,20 152 48 5,1 8,7 15,5
C 7 x 9.8 14,6 9,80 178 53 5,3 9,3 1,85
C 8 x 11.5 17,1 11,50 203 57 5,6 9,9 21,8
C 8 x 13.75 20,5 13,75 203 59 7,7 9,9 26,0
C 8 x 18.75 27,9 18,75 203 64 12,4 9,9 35,6
C 10 x 15.3 22,8 15,30 254 65 6,1 11,1 29,0

C Channels

Size: It’s produced from 4 m to 18 m.
Length: ASTM A6 / A 6M
Tolerances: ASTM A6 / A 6M

Our American Standard Structural channels are used frequently in the construction sector of steel construction design and civil engineering applications. Thanks to our production infrastructure, C channels are able to produce low delivery time and high diversity in line with customer demands.

See Product Details

UPN Channel Sizes (mm)
G
kg/m		 h
mm		 b
mm		 tw
mm		 tf
mm		 r1
mm		 r2
mm		 A
cm2
U 40x20x5 2,9 40 20 5 5,5 5 2 3,7
U 50x25x5 3,9 50 25 5 6 6 2,5 4,9
UPN 50 5,6 50 38 5 7 7 3,5 7,1
UPN 65 7,1 65 42 5,5 7,5 7,5 4 9
UPN 80 8,6 80 45 6 8 8 4 11
UPN 100 10,6 100 50 6 8,5 8,5 4,5 13,5
UPN 120 13,4 120 55 7 9 9 4,5 17
UPN 140 16 140 60 7 10 10 5 20,4
UPN 160 18,8 160 65 7,5 10,5 10,5 5,5 24
UPN 180 22 180 70 8 11 11 5,5 28
UPN 200 25,3 200 75 8,5 11,5 11,5 6 32,2
UPN 220 29,4 220 80 9 12,5 12,5 6,5 37,4
UPN 240 33,2 240 85 9,5 13 13 6,5 42,3
UPN 260 37,9 260 90 10 14 14 7 48,3
UPN 280 41,8 280 95 10 15 15 7,5 53,3
UPN 300 46,2 300 100 10 16 16 8 58,8

UPM Channels

Size: It’s produced from 4 m to 18 m.
Length: DIN 1026-1
Tolerances: EN 10279

Our European Standard Channel profiles are used in the construction area to create steel construction. In addition, UPN channels used in machinery manufacturing and agriculture sectors are produced by our company with 50mm to 300mm high variety and low delivery time.

See Product Details

UPE Channel Sizes (mm)
G
kg/m		 h
mm		 b
mm		 tw
mm		 tf
mm		 r1
mm		 A
cm2
UPE 80 7,9 80 50 4 7 10 10,1
UPE 100 7,9 80 50 4 7 10 10,1
UPE 120 12,1 120 60 5 8 12 15,4
UPE 140 14,5 140 65 5 9 12 18,4
UPE 160 17 160 70 5,5 9,5 12 21,7
UPE 180 19,7 180 75 5,5 10,5 12 25,1
UPE 200 22,8 200 80 6 11 13 29
UPE 220 26,6 220 85 6,5 12 13 33,9
UPE 240 30,2 240 90 7 12,5 15 38,5
UPE 270 35,2 270 95 7,5 13,5 15 44,8

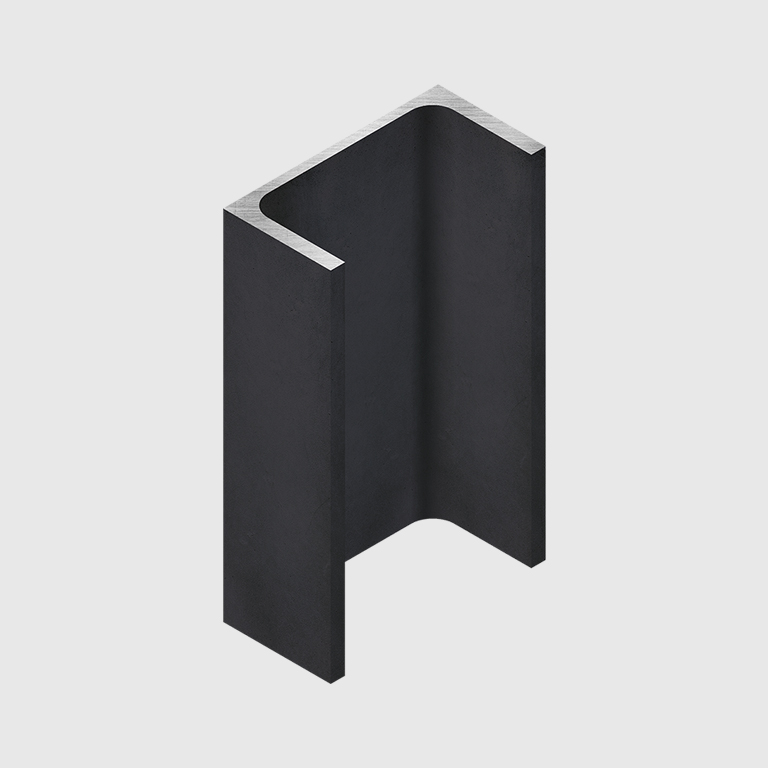

UPE Channels

Size: It’s produced from 4 m to 18 m.
Length: DIN 1026-2
Tolerances: EN 10279

Although our Parallel Flange Channel Profiles are used in many sectors, especially in construction, lightened section UPE-A and UPE-AA profiles are produced in high-quality variety and low delivery time.

See Product Details

CH Channel Sizes (mm)
G
kg/m		 h
mm		 b
mm		 tw
mm		 tf
mm		 r1
mm		 r2
mm		 A
cm2
CH 76x38x7 6,7 76,2 38,1 5,1 6,8 12,0 6 8,60
CH 102x51x10 10,4 101,6 50,8 6,1 7,6 12,0 6 13,10
CH 127x64x15 14,9 127 63,5 6,4 9,2 13,0 6,5 18,80
CH 152x76x18 17,9 152,4 76,2 6,4 9,0 14,0 7 22,50
CH 152x89x24 23,9 152,4 88,9 7,1 11,6 16,0 8 30,00
CH 178x76x21 20,8 177,8 76,2 6,6 10,3 16,0 8 26,40
CH 178x89x27 26,8 177,8 88,9 7,6 12,3 17,0 8,5 33,80
CH 203x76x24 23,9 203,2 76,2 7,1 11,2 17,0 8,8 30,30
CH 203x89x30 29,8 203,2 88,9 8,1 12,9 17,5 8,75 37,60

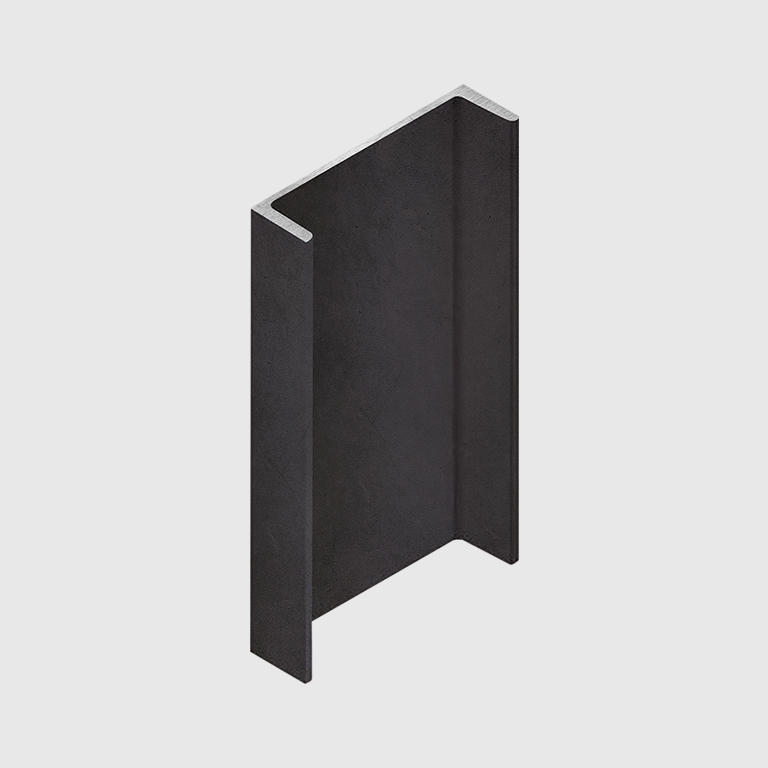

CH Channels

Size: It’s produced from 4 m to 18 m.
Tolerances: EN 10279

CH profiles produced by the hot rolling method are defined as Conical Flanged British Channel Profiles. These profiles are mostly used as structural steel. Special dimensions can be produced according to customer requirements.
